Chicago Pneumatic B16MV Vibration Damped Straight Needle Scaler | 2,400 BPM | 0.9" Bore | 0.4" Stroke

Chicago Pneumatic

MSRP: $885.76
$728.02
(You save $157.74 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 1 to 3 Weeks
SKU:
6151740500
Shipping:
Calculated at Checkout
Weight:
5.30 LBS
Condition:
New
UPC:
15451663988
Adding to cart… The item has been added


Chicago Pneumatic B16MV Vibration Damped Straight Needle Scaler is a culmination of decades of research and technical refinement. Chicago Pneumatic tools are reliable, safe and robust and are value for money and easy to use. This Scaler features an adjustable bayonet type needle housing lock that allows adjustment without special tools. Chicago Pneumatic 6151740500 Needle Scaler is precision heat treated for maximum performance at 2,400 Blows Per Minute. This lever-operated needle scaler is not only fast but extremely durable and efficient. B16MV Needle Scaler features a rubber faced throttle valve to ensure positive sealing of internal components along with a strengthened head block that will hold up in tough conditions. This needle scaler is compact, well balanced and its low vibration feature maximizes accessibility while minimizing operator fatigue.

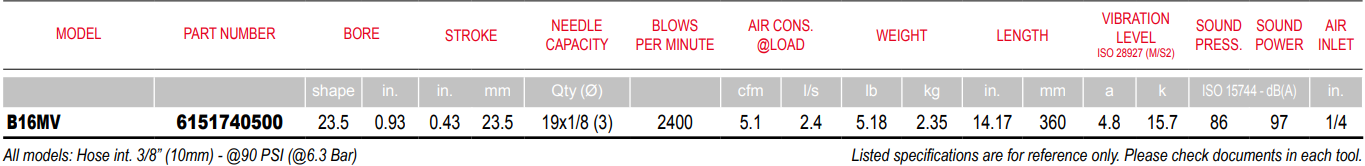

Model Number: B16MV | Blows Per Minute: 2400 (BPM) | Power: 1.8 Joule | Bore: 0.9" / 23.5 mm | Stroke: 0.4" / 11 mm |  Needle Capacity: 19 x 1/8 (3) | Length: 14.2" / 360 mm | Air Cons. @Load: 5.1 (cfm) / 2.4 (l/s) | Vibration Level: 4.8 (a) / 2.2 (k) | Sound Pressure: 86 | Sound Power: 97 | Air Inlet: 1/4"

Features and Benefits:

  • Straight vibration-damped needle scaler
  • Good power/weight ratio
  • Great durability on all industrial maintenance applications
  • Easy to convert into chipping hammer
  • Low vibrations for smooth operations
  • Perfect tool for long hours of operations
  • One hand operation
  • Adjustable front tube grants extended needle life


industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Needle Scaler? Click here to view the Catalog

For help selecting the correct Chicago Pneumatic Needle Scaler for your assembly application, call (800) 608-5210 or email info@intlairtool.com

One year warranty against defects in materials and workmanship
Type:
Needle Scaler
Bore (in.):
0.9
Bore (mm):
23.5
Stroke (in.):
0.4
Stroke (mm):
11
Needle Capacity (in.):
19 x 1/8 (3)
Blows Per Minute (BPM):
2,400
Power (Joule):
1.8
Air Consumption @ Load (cfm):
5.1
Air Consumption @ Load (l/s):
2.4
Length (in.):
14.2
Length (mm):
360
Vibration Level (a):
4.8
Vibration Level (k):
2.2
Sound Pressure dB(A):
86
Sound Power dB(A):
97
Air Intel Size (in.):
1/4
