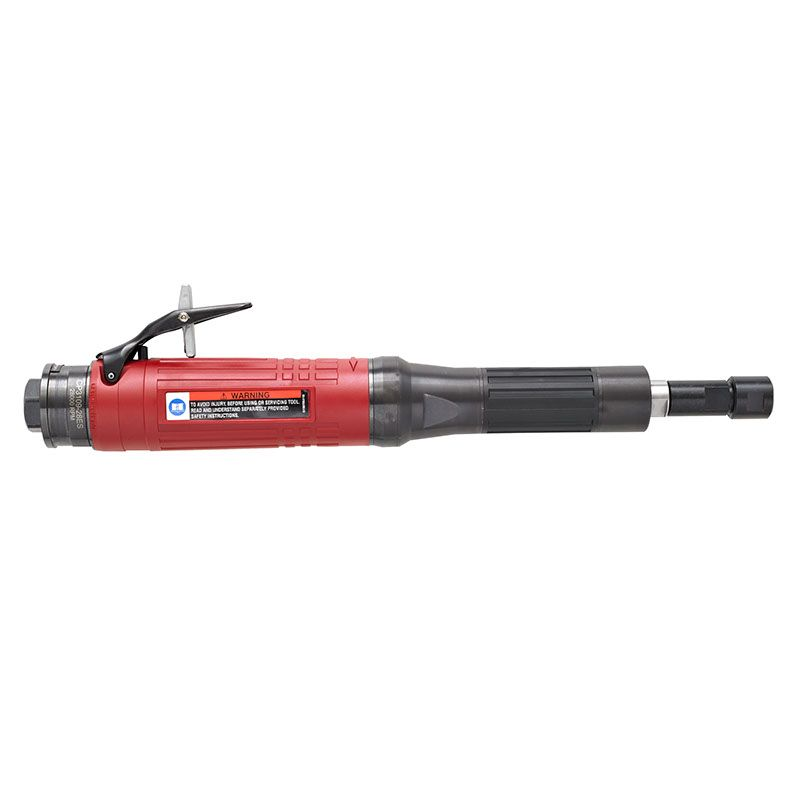

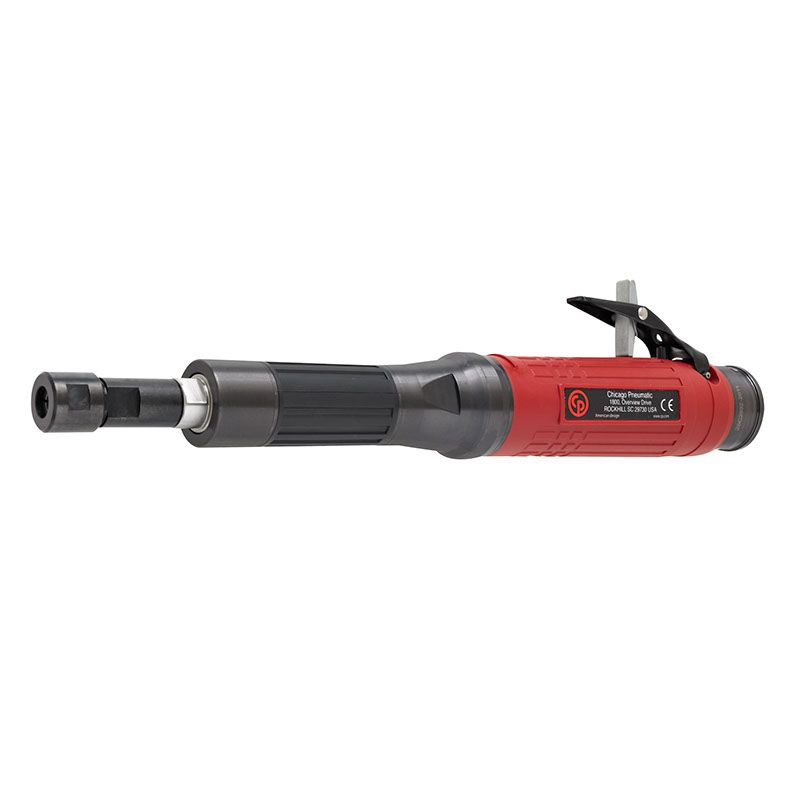

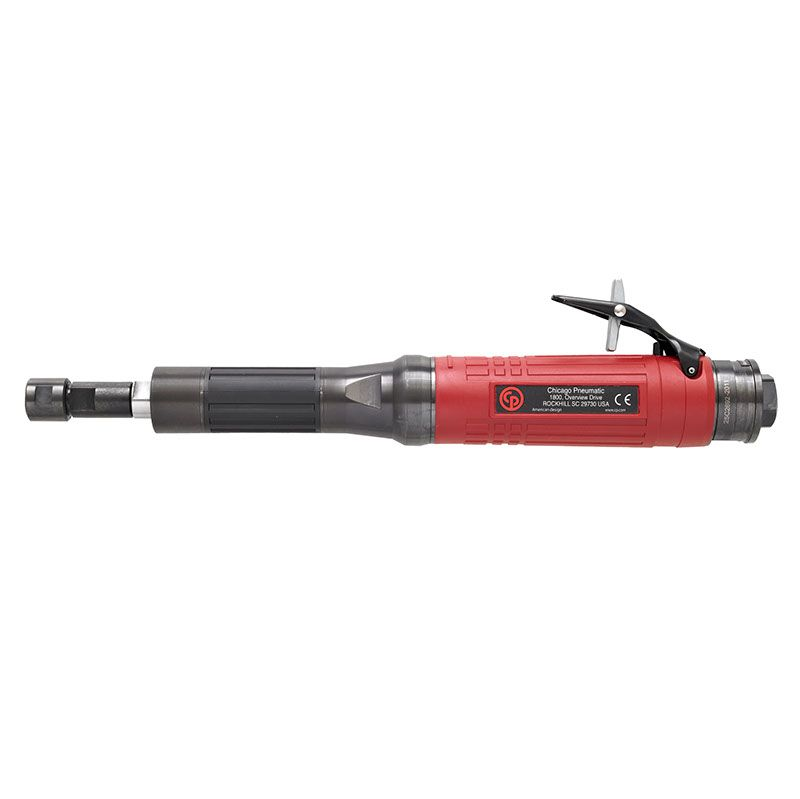

Chicago Pneumatic CP3109-19ES Industrial Die Grinder | 1.0 HP | 19,000 RPM | 1/4" Collet Capacity | Steel Housing

Chicago Pneumatic

MSRP: $1,172.97
$964.08
(You save $208.89 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 1 to 3 Weeks
SKU:
6151602080
Shipping:
Calculated at Checkout
Weight:
2.90 LBS
Condition:
New
UPC:
15451685874
Adding to cart… The item has been added


Chicago Pneumatic CP3109-19ES Industrial Die Grinder is a culmination of decades of research and technical refinement. Chicago Pneumatic tools are reliable, safe and robust and are value for money and easy to use. Chicago Pneumatic 6151602080 Die Grinder is designed to provide high performance and ergonomics and is engineered to outlast and outperform the competition. Powerful 0.8 HP air motor delivers plenty of strength with 19,000 RPM of rotational speed. CP3109-19ES Die Grinder feature a vane motor and a lightweight, steel housing that can stand up to harsh temperature changes. Precision gearing and components contribute to long and reliable tool life. 6151602080 Industrial Die Grinder is ideal for removing material, weld cleaning, deburring, cutting, blending, grinding, sanding and polishing. These die grinders offer smooth operation, maximum power, and efficient performance.

Model Number: CP3109-19ES | Free Speed: 19,000 rpm | Power: 0.8 hp / 600 kW | Collet Capacity: 1/4" / 6.35mm | Air Consumption @ Load: 31.8 cfm / 15 l/s Length: 14.5" / 363mm | Sound Pressure dB(A): 76 | Sound Power dB(A): 87 | Air Inlet Size: 3/8"

Features & Benefits:

  • Steel housing
  • Insulating composite over-housing
  • Streamlined safety lever
  • Rear exhaust
  • Industrial die grinder
  • High productivity
  • Highest durability in demanding applications up to 2000 hours maintenance intervals


industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Grinder for your assembly application, call (800) 608-5210 or email info@intlairtool.com

One year warranty against defects in materials and workmanship
Type:
Die Grinder
Motor (HP):
0.8
Power (kW):
600
Free Speed (RPM):
19,000
Collet Capacity (in.):
1/4
Collet Capacity (mm):
6.35
Air Consumption @ Load (cfm):
31.8
Air Consumption @ Load (l/s):
15
Length (in.):
14.5
Length (mm):
363
Sound Pressure dB(A):
76
Sound Power dB(A):
87
Air Inlet Size (in.):
3/8
