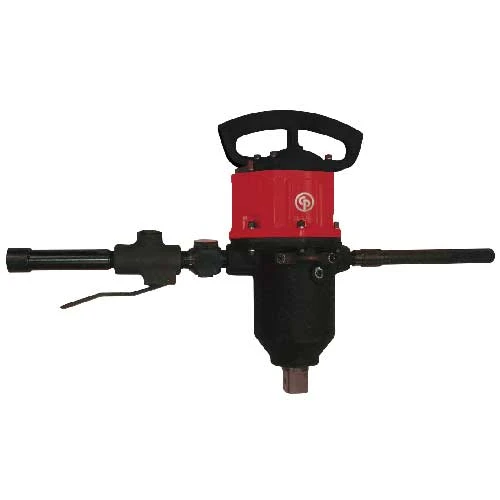

Chicago Pneumatic CP6130-T70 Impact Wrench | 1-1/2" Drive | Max Torque 9220 Ft. Lbs | 4000 RPM

Chicago Pneumatic

MSRP: $13,756.57
$11,306.77
(You save $2,449.80 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 1 to 3 Weeks
SKU:
6151590010
Shipping:
Calculated at Checkout
Weight:
72.60 LBS
Condition:
New
Adding to cart… The item has been added


The Chicago Pneumatic CP6130-T70 T-Handle Impact Wrench delivers smooth operation and excellent durability. It is a Powerful, Durable & Comfortable 1-1/2" T-Handle impact wrench for industrial maintenance applications and production applications with incredible breaking torque (up to M56). It is a 1-1/2" Super Duty T-Handle Impact Wrench with Reliable Double Rocking Dog clutch for excellent performance. Featuring a durable aluminum body and clutch housing, It has 5-positions regulator, progressive trigger and easy reverse. It features a removable dead handle and comfortable top handles. It also has Suspension hole for easy hoist/balancer hooking. With 9220 ft. lbs - 12500 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 2430 to 5240 ft./lbs. This product weighs 72.6 lbs, measures 19.7 inches long, and has a 1-1/2 output drive.

Features:

  • 1-1/2" Super Duty T-Handle
  • Reliable Double Rocking Dog clutch
  • Durable aluminum body & clutch housing
  • 5-positions regulator, progressive trigger & Easy reverse
  • Removable dead handle and comfortable Top handles
  • Suspension hole for easy hoist/balancer hooking

Benefits:

  • Incredible breaking torque (up to M56) for Industrial Maintenance & Production applications
  • Extreme durability: resistant parts, reliable mechanisms & robust housing
  • Operator comfort: smooth control, low vibrations & limited noise
  • Compact 3-parts construction for easy maintenance

CP6130-T70-Table

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Tools? Click here to view the Catalog

For help choosing the correct tool for your application, please call (800) 608-5210 or email info@intlairtool.com

Chicago Pneumatic warrants its tools to be free from defects inherent in their manufacture for a period of twelve months.
Type:
Impact Wrench
Handle Type:
T-Handle
Actual Air Consumption (cfm):
67.3
Actual Air Consumption (I/s):
31.76
Air inlet (in.):
1 NPT
Blows Per Minute:
900
Clutch Type:
Double Rocking Dog
European Standards:
EN ISO 11148-6:2013
Free Speed (rpm):
4000
Length (mm):
500
Length (in.):
19.7
Maximum Reverse Torque (ft.lbs):
9220
Maximum Reverse Torque (Nm):
12500
Min. Hose Size (in.):
3/4
Min. Hose Size (mm):
19
Socket Retainer:
Hole
Side to Center (in.):
3.14
Side to Center (mm):
80
Sound Power (dbA):
115
Sound Pressure (dbA):
104
Square Drive (in.):
1 1/2
Vibration (m/s²):
4.7
Vibration ISO:
ISO-28927-2
Vibration Uncertainty (K) (m/s²):
1.7
Working Torque Range (fwd) (ft.lbs):
2430 - 5240
Working Torque Range (fwd) (Nm):
3300 - 7100
