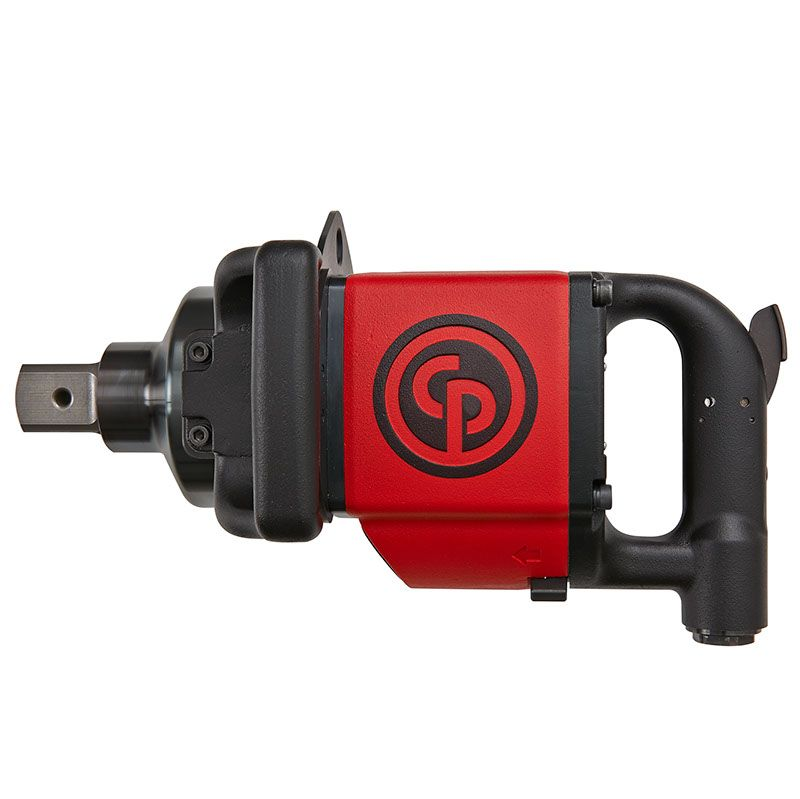

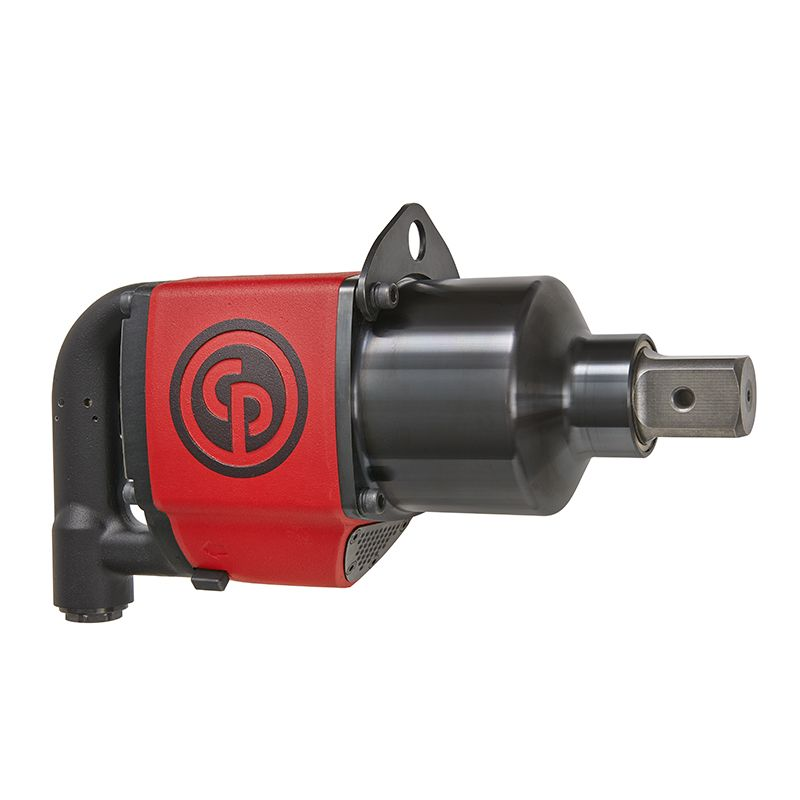

Chicago Pneumatic CP6135-D80 Impact Wrench | 1-1/2" Drive | Max torque 5900 Ft Lbs | 2800 RPM

Chicago Pneumatic

MSRP: $8,696.94
$7,148.17
(You save $1,548.77 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 1 to 3 Weeks
SKU:
6151590380
Shipping:
Calculated at Checkout
Weight:
35.30 LBS
Condition:
New
Adding to cart… The item has been added


The Chicago Pneumatic CP6135-D80 Impact Wrench delivers smooth operation and excellent durability. It offers monster power for the lightweight and compact size. It is of premium quality for the most demanding applications, all maintenance applications and general repairs. It features a durable Pinless Rocking Dog clutch for improved performance. It has robust aluminum body & Steel clutch housing. The reversible and teasing steel trigger ensures smooth operation. With 5900 ft.lbs - 8000 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 740 to 4055 ft./lbs. This product weighs 35.3 lbs, measures 16 inches long, and has a 1-1/2 output drive.

Features:

  • Durable Pinless Rocking Dog clutch
  • Robust aluminum body & Steel clutch housing
  • Reversible and teasing steel trigger

Benefits:

  • Monster Power for the light weight and compact size
  • Premium quality for the most demanding applications
  • Smooth operation thanks to the teasing trigger

CP6135-D80-Table

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Tools? Click here to view the Catalog

For help choosing the correct tool for your application, please call (800) 608-5210 or email info@intlairtool.com

Chicago Pneumatic warrants its tools to be free from defects inherent in their manufacture for a period of twelve months.
Type:
Impact Wrench
Handle Type:
D-Handle Inside Trigger
Actual Air Consumption (cfm):
84.5
Actual Air Consumption (I/s):
40
Air inlet (in.):
1/2 NPT
Blows Per Minute:
750
Clutch Type:
Pinless Rocking Dog
European Standards:
EN ISO 11148-6:2013
Free Speed (rpm):
2800
Length (mm):
408
Length (in.):
16
Maximum Reverse Torque (ft.lbs):
5900
Maximum Reverse Torque (Nm):
8000
Min. Hose Size (in.):
5/8
Min. Hose Size (mm):
19
Socket Retainer:
Hole
Side to Center (in.):
2.65
Side to Center (mm):
67.5
Sound Power (dbA):
109
Sound Pressure (dbA):
98
Square Drive (in.):
1 1/2
Vibration (m/s²):
13.6
Vibration ISO:
ISO-28927-2
Vibration Uncertainty (K) (m/s²):
2.2
Working Torque Range (fwd) (ft.lbs):
740 - 4055
Working Torque Range (fwd) (Nm):
1000 - 5500
