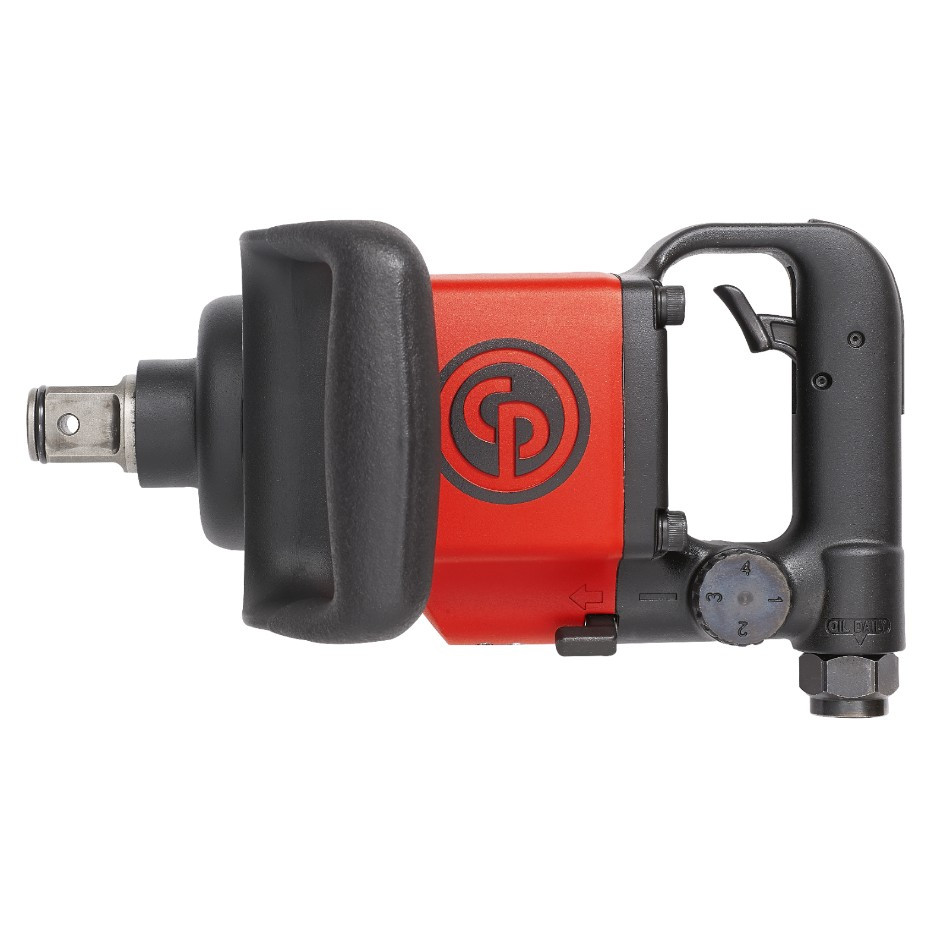

Chicago Pneumatic CP6773-D18D Impact Wrench | 1" Drive | Max Torque 1300 Ft. Lbs | 6600 RPM

Chicago Pneumatic

List Price: $961.78
$790.50
(You save $171.28 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 1 to 3 Weeks
SKU:
6151590650
Shipping:
Calculated at Checkout
Weight:
14.70 LBS
Condition:
New
Adding to cart… The item has been added


The Chicago Pneumatic CP6773-D18D Impact Wrench with hole and ring retaining system delivers easy operation and extended durability. It is a versatile, compact, lightweight and powerful D-handle Impact Wrench, ideal for many industrial Maintenance and MRO applications. It features powerful twin hammer clutch for great performance. It is a robust tool featuring steel clutch housing and aluminum motor housing. The ergonomic D-handle offers a durable and comfortable grip and superior operator comfort. With 1300 ft. lbs - 1760 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 250 to 1070 ft./lbs. This product weighs 14.7 lbs, measures 11.4 inches long, and has a 1-inch output drive.

Features:

  • Suited for many industrial MRO
  • Good ergonomics giving less operator's fatigue
  • Hole and ring retaining system

Benefits:

  • Only 6,7 kg
  • Robust with steel clutch housing and aluminum motor housing
  • Powerful, untightening torque 1300 ft.lb (1760 Nm)

CP6763-D18D-Table

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Tools? Click here to view the Catalog

For help choosing the correct tool for your application, please call (800) 608-5210 or email info@intlairtool.com

Chicago Pneumatic Impact Wrench Feature a One Year Warranty Against Defects in Materials and Workmanship.
Type:
Impact Wrench
Handle Type:
D-Handle Inside Trigger
Actual Air Consumption (cfm):
41
Actual Air Consumption (I/s):
19.3
Air inlet (in.):
1/2 NPT
Blows Per Minute:
730
Clutch Type:
Twin Hammer
European Standards:
EN ISO 11148-6:2013
Free Speed (rpm):
6600
Length (mm):
290
Length (in.):
11.4
Maximum Reverse Torque (ft.lbs):
1300
Maximum Reverse Torque (Nm):
1760
Min. Hose Size (in.):
3/8
Min. Hose Size (mm):
13
Socket Retainer:
Dual (Hole + Friction)
Side to Center (in.):
1.6
Side to Center (mm):
41
Sound Power (dbA):
109
Sound Pressure (dbA):
98
Square Drive (in.):
1
Vibration (m/s²):
11.4
Vibration ISO:
ISO-28927-2
Vibration Uncertainty (K) (m/s²):
2.9
Working Torque Range (fwd) (ft.lbs):
250 - 1070
Working Torque Range (fwd) (Nm):
340 - 1450
