Chicago Pneumatic CP8252-R Versatile Impact Wrench | 1/2" Drive | Max Torque 700 Ft. Lbs | 9000 RPM

Chicago Pneumatic

List Price: $370.71
$304.69
(You save $66.02 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 1 to 3 Weeks
SKU:
6151590250
Shipping:
Calculated at Checkout
Weight:
4.40 LBS
Condition:
New
Adding to cart… The item has been added


The Chicago Pneumatic CP8252-R Impact Wrench delivers smooth operation and extended durability. It is a durable, lightweight, reliable and powerful 1/2" impact wrench with ring retainer, ideal for industrial maintenance and production applications. It is a multi-purpose tool which produces very low noise and very limited vibrations. It is powerful and easy to control for precise assembly jobs. It features powerful and durable twin hammer clutch for improved performance. It also features a progressive trigger with 3 power settings in forward and full power in reverse. The CP8252-R has a durable composite body and aluminum clutch housing. it also has protective cover and suspension bail. The ergonomic handle has rubber grip and offers a durable and comfortable grip and superior operator comfort. With 700 ft.lbs - 950 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 110 to 553 ft./lbs. This product weighs 4.4 lbs, measures 7.9 inches long, and has a 1/2-inch output drive.

Features:

  • 1/2" impact with ring retainer
  • Powerful & durable twin hammer clutch
  • Composite body and aluminum clutch housing
  • 3 power settings in forward & full power in reverse
  • Protective cover & suspension bail
  • Progressive trigger & Rubber grip

Benefits:

  • Very low noise level, limited vibration and lightweight for operator comfort
  • Powerful and easy to control for precise assembly jobs
  • Durable and reliable impact for Industrial Maintenance and Production applications
  • Multi-purpose tool for a large variety of applications

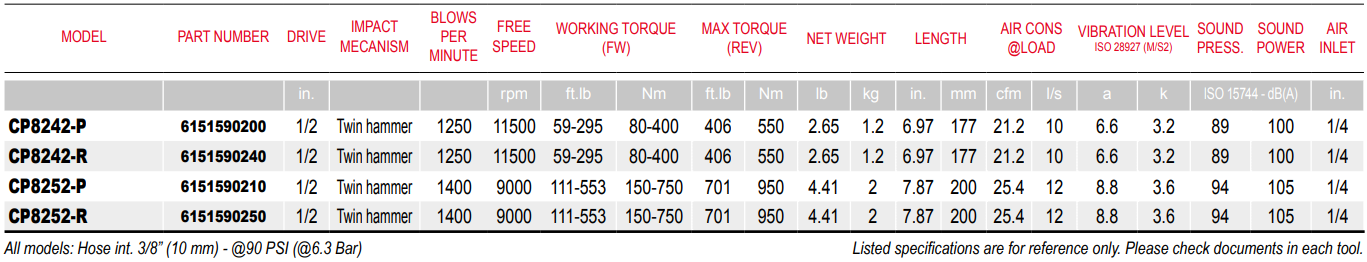

CP8242 P-Table

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Tools? Click here to view the Catalog

For help choosing the correct tool for your application, please call (800) 608-5210 or email info@intlairtool.com

Chicago Pneumatic warrants this tool to be free of defects in materials and workmanship for the period of one year
Type:
Impact Wrench
Handle Type:
Pistol
Actual Air Consumption (cfm):
25.4
Actual Air Consumption (I/s):
12
Air inlet (in.):
1/4 NPT
Blows Per Minute:
1400
Clutch Type:
Twin Hammer
European Standards:
EN ISO 11148-6:2013
Free Speed (rpm):
9000
Length (mm):
200
Length (in.):
7.9
Maximum Reverse Torque (ft.lbs):
700
Maximum Reverse Torque (Nm):
950
Min. Hose Size (in.):
3/8
Min. Hose Size (mm):
10
Socket Retainer:
Friction Ring
Side to Center (in.):
1.38
Side to Center (mm):
35
Sound Power (dbA):
105
Sound Pressure (dbA):
94
Square Drive (in.):
1/2
Vibration (m/s²):
8.8
Vibration ISO:
ISO-28927-2
Vibration Uncertainty (K) (m/s²):
3.6
Working Torque Range (fwd) (ft.lbs):
110 - 553
Working Torque Range (fwd) (Nm):
150 - 750
