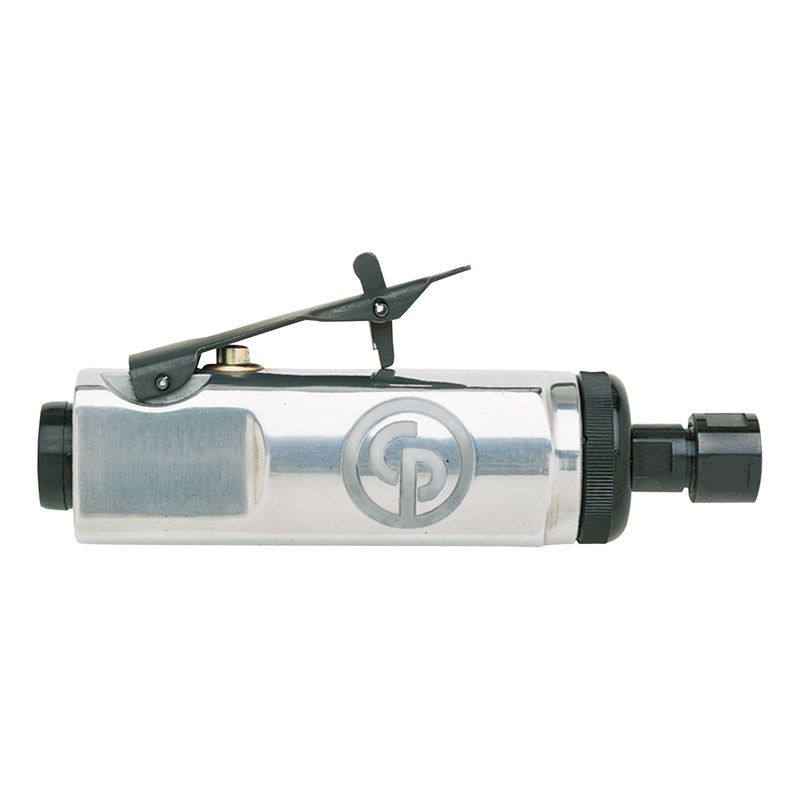

Chicago Pneumatic CP860 Straight Die Grinder | 0.54 HP | 24,000 RPM | 1/4" Collet Capacity | Rear Exhaust

Chicago Pneumatic

List Price: $301.75
$181.05
(You save $120.70 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 3 to 5 Business Days
SKU:
T019704
Shipping:
Calculated at Checkout
Weight:
1.25 LBS
Condition:
New
UPC:
15451197049
Adding to cart… The item has been added


Chicago Pneumatic CP860 Angle Die Grinder is a culmination of decades of research and technical refinement. Chicago Pneumatic tools are reliable, safe and robust and are value for money and easy to use. Chicago Pneumatic T019704 Die Grinder is designed to provide high performance and ergonomics and is engineered to outlast and outperform the competition. Powerful 0.54 hp air motor delivers plenty of strength with 24,000 RPM of rotational speed. CP860 Die Grinder feature a vane motor and a lightweight, steel housing that can stand up to harsh temperature changes. Precision gearing and components contribute to long and reliable tool life. T019704 Die Grinder is ideal for cleaning tires, moldings, porting, relieving engines, and general high-speed polishing and grinding. These pneumatic die grinders offer smooth operation, maximum power, and efficient performance.

Model: CP860 | Power: 0.54 hp / 400 W | Free Speed: 24,000 (RPM) | Collet Capacity: 1/4" / 6.35mmAir Consumption @ Load: 21 cfm / 9.9 l/s | Length: 5.8" / 146 | Sound Power dB(A)104 | Sound Pressure dB(A): 93 | Exhaust: Rear | Air Inlet Size: 1/4

Features and Benefits:

  • General maintenance application die grinder
  • Productivity and control
  • Excellent for cleaning tires, moldings, porting, relieving engines, and general high-speed polishing and grinding
  • Rugged and energy efficient
  • Adjustable speed regulator
  • Lock-off throttle
  • Square handle design for greater comfort


industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Grinder for your assembly application, call (800) 608-5210 or email info@intlairtool.com

One year warranty against defects in materials and workmanship
Type:
Straight Die Grinder
Motor (HP):
0.54
Power (kW):
440
Free Speed (RPM):
24,000
Collet Capacity (in.):
1/4
Collet Capacity (mm):
6.35
Exhaust:
Rear
Air Consumption @ Load (cfm):
21
Air Consumption @ Load (l/s):
9.9
Length (in.):
5.8
Length (mm):
146
Min. Hose Size (in.):
3/8
Min. Hose Size (mm):
10
Sound Power dB(A):
104
Sound Pressure dB(A):
93
Air Inlet Size (in.):
1/4
