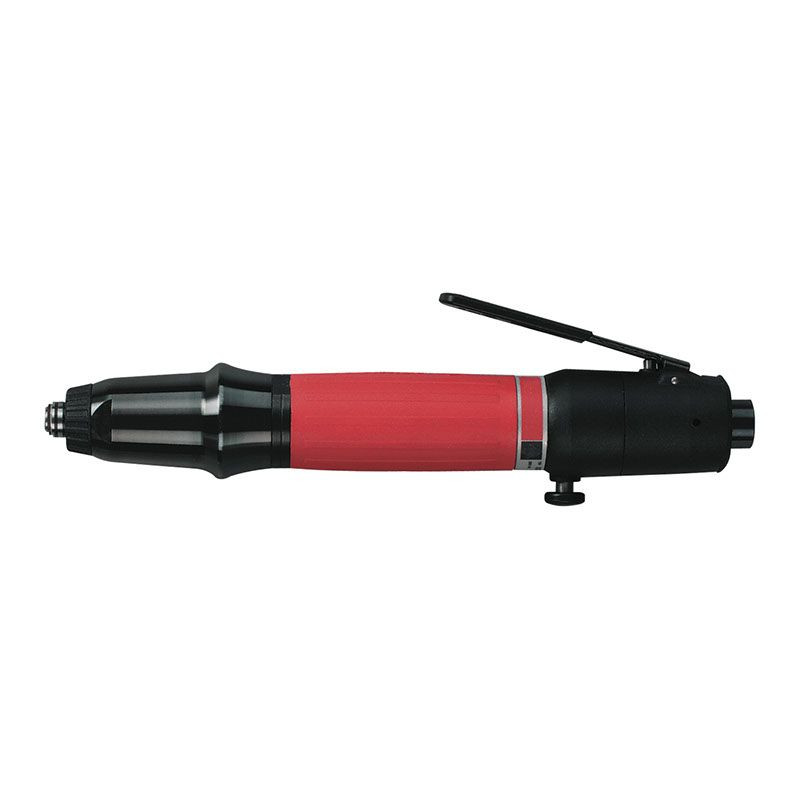

Desoutter SD100-LB510-R4Q Inline Pneumatic Screwdriver | 510 RPM | 5.3-88.5 (in-lb) Torque Range | Non Shut-Off Clutch | Lever-Start

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Desoutter SD100-LB510-R4Q Inline Pneumatic Screwdriver | 510 RPM | 5.3-88.5 (in-lb) Torque Range | Non Shut-Off Clutch | Lever-Start

Desoutter Tools

$1,113.00
(No reviews yet) Write a Review
Availability:
Usually Ships Within 8 to 12 Weeks of Order
SKU:
1463164
Shipping:
Calculated at Checkout
Weight:
2.03 LBS
Condition:
New
Adding to cart… The item has been added


Desoutter SD100-LB510-R4Q Non Shut-off Lever Start Inline Pneumatic Screwdriver is excellent for various industrial and general maintenance applications. With its high speed and joint stiffness capability, it is an ergonomic solution to deliver comfort and productivity, while assuring decreased operator fatigue. It delivers High accuracy. Desoutter 1463164 Pneumatic Screwdriver is accurate, fast and reliable and can speed up to 510 rpm. This tool is extremely lightweight and operates at a very low noise level of around 73 db. With proven Desoutter quality, you can count on these tools to perform cycle after cycle. Desoutter prides itself on developing tools for the toughest jobs technicians and operators face every day.

Operation: Lever Start | Clutch Type: Non Shut Off | Output Hex: 1/4" | Free Speed: 510 rpm | Torque Range: 0.6-10 Nm / 5.3-88.5 in-lb | Weight: 2.03 lb / 0.92 kg | Overall Length: 10.9" / 278 mm | Min Hose Size: 3/8"

Features:

  • Low weight
  • Minimize torque reaction
  • Thermal insulation
  • Excellent grip
  • Minimize necessary trigger loading
  • Maximize power to weight ratio
  • Minimize oil from exhaust


industrial-tools-parts-breakdown.pngLooking for more information about Desoutter Tools? Click here to view the Catalog

For help selecting the correct Desoutter Screwdriver for your assembly application, call (800) 608-5210 or email info@intlairtool.com

One year warranty against defects in materials and workmanship.
Type:
Screwdriver
Operation:
Push Start
Free Speed (RPM):
510
Output Hex (in.):
1/4
Torque Range (Nm):
0.6 - 10
Torque Range (in-lb):
5.3 - 88.5
Fitted Spring (Nm):
3.5 - 10
Fitted Spring (in-lb):
31 - 88.5
Air Flow (l/s):
8.7
Air Flow (cfm):
18.4
Air Inlet Size (in.):
1/4
Hose Size (mm):
10
Hose Size (in.):
3/8
