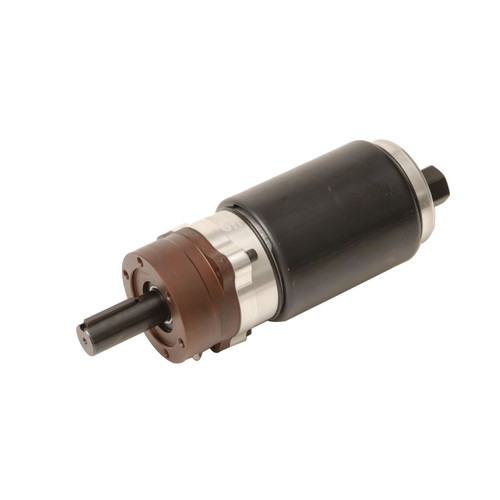

Ingersoll Rand 3800 and 3840 Series


Ingersoll Rand's 3800 and 3840 Series air motors are powerful and durable in-line planetary gear, multi-vane air motors designed for demanding industrial applications. These air motors offer variable speed and torque control, instant start and reverse capabilities, and a compact design. Their rugged construction and air-cushioned start-up ensure long life and low maintenance, making them ideal for use in harsh environments and hazardous locations. With their wide range of applications, including material handling, conveyor systems, and automotive assembly, these air motors provide a reliable and efficient power solution.

Features:

  • No heat build up or sparks make Ingersoll Rand Air Motors ideal for use in flammable or explosive applications
  • A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals
  • Free Speed: 83 RPM to 1100 RPM
  • Get maximum horsepower in minimum size
  • Able to utilize a wide range of speeds by using a simple valve on your input air supply line.
  • Maintain with a clean, dry lubricated supply.
  • Six hole face mount standard
  • Optional 3/4" npt piped away exhaust options available
  • Square drive option available


Tech Tip: To increase tool performance, extend tool life and lessen repair cost use it with a Filter-Regulator-Lubricator (Click Here To Shop FRLs)

industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Motors? Click here to view the Ingersoll Rand Air Motors Catalog.
