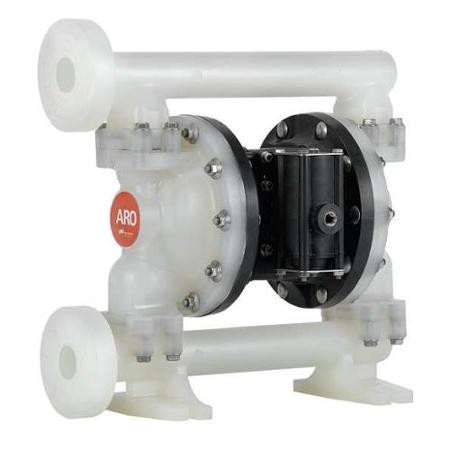

ARO PD10P-APS-PTT Air Operated Diaphragm Pump | Expert Series | 1" Non-Metallic | 53 Maximum GPM | PTFE Ball Material

ARO Diaphragm Pumps are engineered to be simple and smart, resulting in efficient operation, high performance, and low maintenance. PD10P-APS-PTT Air Operated Diaphragm Pump is a truly versatile fluid handling solution for numerous applications, practically compatible with any automation system in the industry. PD10P-APS-PTT Diaphragm Pump has a distinctive ARO Quick Dump valve that keeps cold exhaust air out of the air motor, which helps to prevent icing. It also comes with pre-assembled components for hassle-free and error-proof installation and operator comfort. The solenoid actuation allows accurate cycle rate control and provides a more consistent volume per stroke. ARO Expert Series Diaphragm Pumps are known for industry-leading efficiency, reliability, flow rates, and a large range of materials and porting, ensuring consistency in even the most demanding environments.

Maximum GPM (LPM): 53.0 GPM / 200.6 LPM | Ratio: 1:1 | Air Inlet (Female): 1/4-18 N.P.T. | Suspended solids max. dia. in. (mm): 1/8" (3.2) | Fluid Cap/Manifold: Polypropylene (1 port) | Center Section: Polypropylene | Seat: Polypropylene | Ball: PTFE | Diaphragm Material: PTFE / Santoprene

Features:

• Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal

• Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
• Versatility - Broad range in materials of construction for optimum fluid compatibility
• Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking
• Serviceability - Easier service through modular design

Made in USA:

Flow Charts

Looking for more information about Ingersoll Rand ARO Diaphragm Pump? Click here to view the Catalog

For help selecting the correct Ingersoll Rand ARO Diaphragm Pump for your assembly application, call (800) 608-5210 or email info@intlairtool.com
