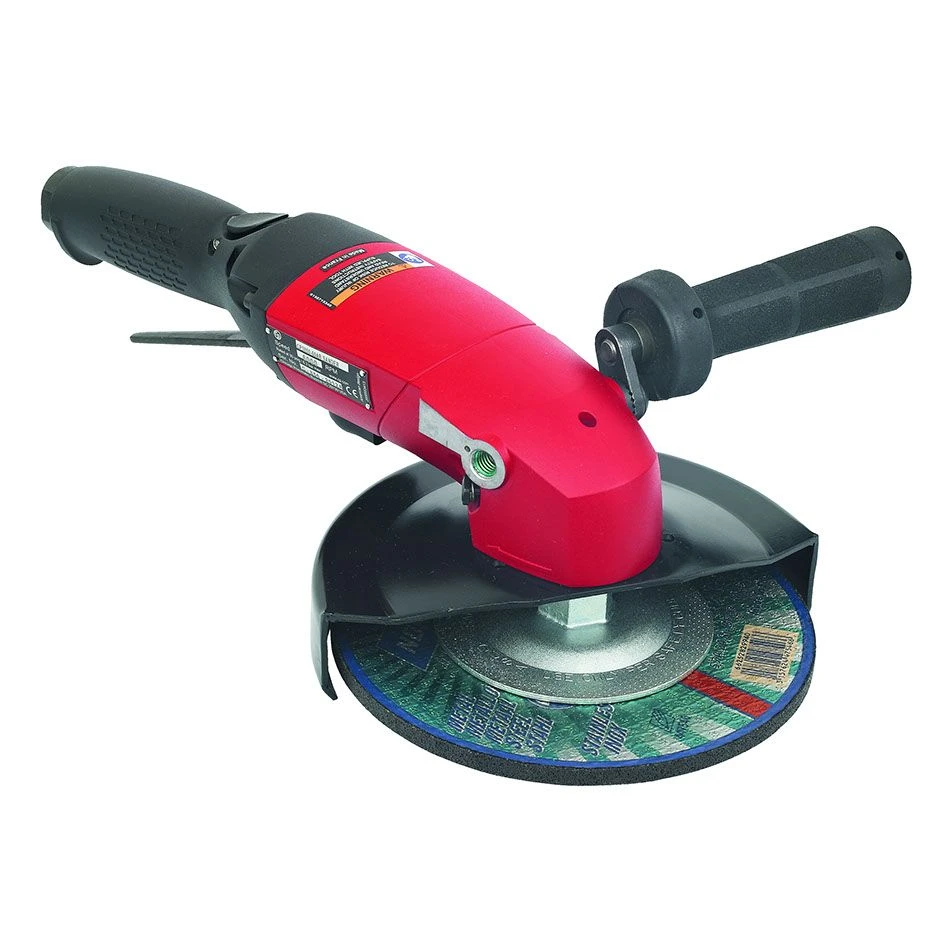

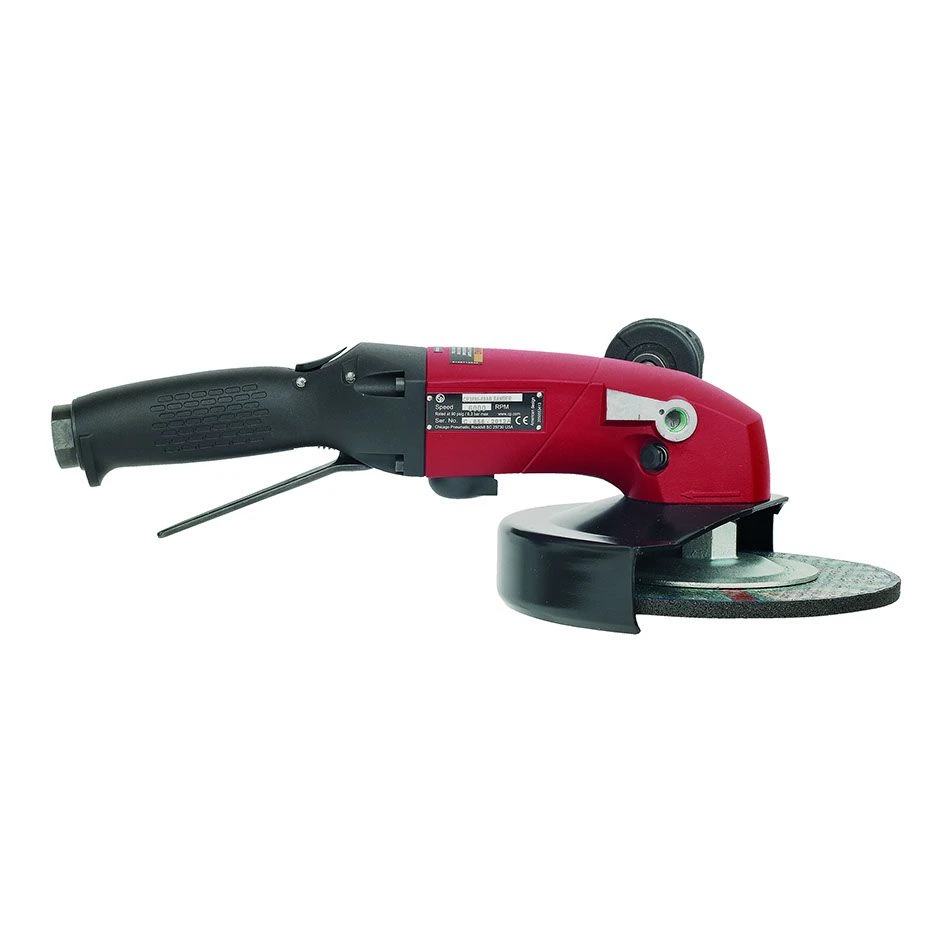

Chicago Pneumatic CP3850-77AB7V Angle Wheel Grinder | 2.8 HP | 7,700 RPM | 7" Max Wheel Capacity

Chicago Pneumatic

List Price: $1,953.70
$1,605.78
(You save $347.92 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 1 to 3 Weeks
SKU:
6151704960
Shipping:
Calculated at Checkout
Weight:
6.60 LBS
Condition:
New
UPC:
15451699864
Adding to cart… The item has been added


Chicago Pneumatic CP3850-77AB7V Angle Wheel Grinder is a culmination of decades of research and technical refinement. Chicago Pneumatic tools are reliable, safe and robust and are value for money and easy to use. Chicago Pneumatic 6151704960 Angle Grinder is designed to provide superlative performance and ergonomics and is engineered to outlast and outperform the competition. It features a 2.8 HP motor which delivers plenty of strength with 7,700 RPM of rotational speed. CP3850-77AB7V Angle Grinder also features double action safety lever that ensures operator safety. This pneumatic tool meets the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications. This pneumatic air tool is ideal for industrial use and demanding environments.

Model: CP3850-77AB7V | Free Speed: 7,700 rpm | Length: 340mm / 13.4" | Min. Hose Size: 16mm / 5/8" | Power: 2,100 kW / 2.8 hp | Sound Power dB(A): 95 | Sound Pressure dB(A): 84 | Vibration Uncertainty (K): 1.1 m/s² | Wheel Capacity: 180mm / 7"

Features & Benefits:

  • Industrial angle wheel grinder
  • Highest durability in demanding applications with up to 2,000 hours maintenance intervals
  • Superior torque for maximum productivity
  • Superior ergonomics
  • Low profile angle head
  • Superior durability bevel gearing
  • Double action safety lever
  • Curved handle housing
  • Integrated silencer
  • Orientable exhaust
  • Spindle lock button
  • Vibration damping multi-position side handle


industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Grinder for your assembly application, call (800) 608-5210 or email info@intlairtool.com

One year warranty against defects in materials and workmanship
Type:
Angle Wheel Grinder
Motor (HP):
2.8
Power (kW):
2,100
Free Speed (RPM):
7,700
Max. Wheel Capacity (in.):
7
Max. Wheel Capacity (mm):
180
Spindle Thread (in.):
5/8-11
Free Speed Air Consumption (cfm):
33
Free Speed Air Consumption (l/s):
16
Actual Air Consumption (cfm):
69
Actual Air Consumption (l/s):
32
Length (in.):
13.4
Length (mm):
340
Min. Hose Size (in.):
5/8
Min. Hose Size (mm):
16
Sound Pressure dB(A):
84
Sound Power dB(A):
95
Air Inlet Thread Size (in.):
1/2
