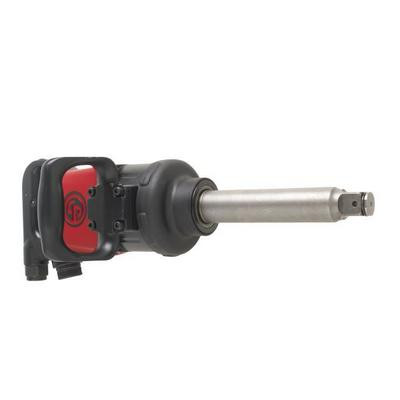

Chicago Pneumatic CP7782-6 Impact Wrench | 1" Drive | Max Torque 1920 Ft. Lbs | 5200 RPM

Chicago Pneumatic

MSRP: $1,346.29
$807.77
(You save $538.52 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 3 to 5 Business Days
SKU:
8941077826
Shipping:
Calculated at Checkout
Weight:
25.60 LBS
Condition:
New
Adding to cart… The item has been added


The Chicago Pneumatic CP7782-6 Impact Wrench delivers easy operation and extended durability. it is a Durable impact wrench with great power for the toughest jobs on heavy vehicles, it has a high efficiency motor, yet it is economical with durable reinforced clutch mechanism. It features pinless closed reinforced rocking dog impact mechanism for improved performance. It is a 1" straight impact wrench with 6" extended anvil. The Regulator is integrated with forward/reverse with 3-position power settings in both directions. It also has dual socket retention, hole and friction ring. The ergonomic side handle offers a durable and comfortable grip and superior operator comfort. With 1920 ft. lbs - 2600 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 370 to 1475 ft./lbs. This product weighs 25.6 lbs, measures 20.4 inches long, and has a 1-inch output drive.

Features:

  • #5 spline straight impact wrench with 6" extended anvil
  • 1920 ft. lbs - 2600 Nm of maximum torque in reverse
  • Pinless closed reinforced rocking dog impact mechanism
  • Socket retainer ring combined with hole retainer
  • Ergonomic side handle
  • Full teasing trigger
  • Regulator with integrated forward/reverse with 3-position power settings in both directions

Benefits:

  • High efficiency motor, yet economical with durable reinforced clutch mechanism
  • Durable impact wrench with great power for the toughest jobs on heavy vehicles

CP7782-6-Table

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Tools? Click here to view the Catalog

For help choosing the correct tool for your application, please call (800) 608-5210 or email info@intlairtool.com

One year warranty against defects in materials and workmanship
Type:
Impact Wrench
Handle Type:
Ergonomic
Actual Air Consumption (cfm):
40.7
Actual Air Consumption (I/s):
19.2
Air inlet (in.):
1/2 NPT
Avg Air Consumption (cfm):
10
Avg Air Consumption (I/s):
4.8
Blows Per Minute:
500
European Standards:
EN ISO 11148-6:2013
Free Speed (RPM):
5200
Length (mm):
520
Length (in.):
20.4
Maximum Reverse Torque (ft.lbs):
1920
Maximum Reverse Torque (Nm):
2600
Min. Hose Size (in.):
1/2
Min. Hose Size (mm):
13
Sound Power (dbA):
111
Sound Pressure (dbA):
100
Square Drive (in.):
1
Vibration (m/s²):
7.8
Vibration ISO:
ISO-28927-2
Vibration Uncertainty (K) (m/s²):
1.8
Working Torque Range (fwd) (ft.lbs):
370 - 1475
Working Torque Range (fwd) (Nm):
500 - 2000
