The Walter Surface Technologies 39D050 ICECUT MINI Low Profile Magnetic Drilling Unit is a remarkable and compact drilling tool, specially designed for tasks that demand precision and accuracy within a smaller drilling capacity. With a 2 x 2-in. (50.8 mm x 50.8 mm) Drilling Capacity, this unit excels in applications that require fine, controlled drilling work. Powering this low-profile magnetic drilling unit is a robust 10 A (Amp) Motor, striking a harmonious balance between power and portability. The motor's amperage rating is well-suited to the unit's compact design, offering users a combination of performance and maneuverability. One of the standout features of this unit is its variable speed control, offering a speed range from 250 to 500 RPM (Revolutions Per Minute). This feature is especially valuable for applications where precise control of drilling speed is essential, ensuring that users can achieve the desired results with accuracy and efficiency.

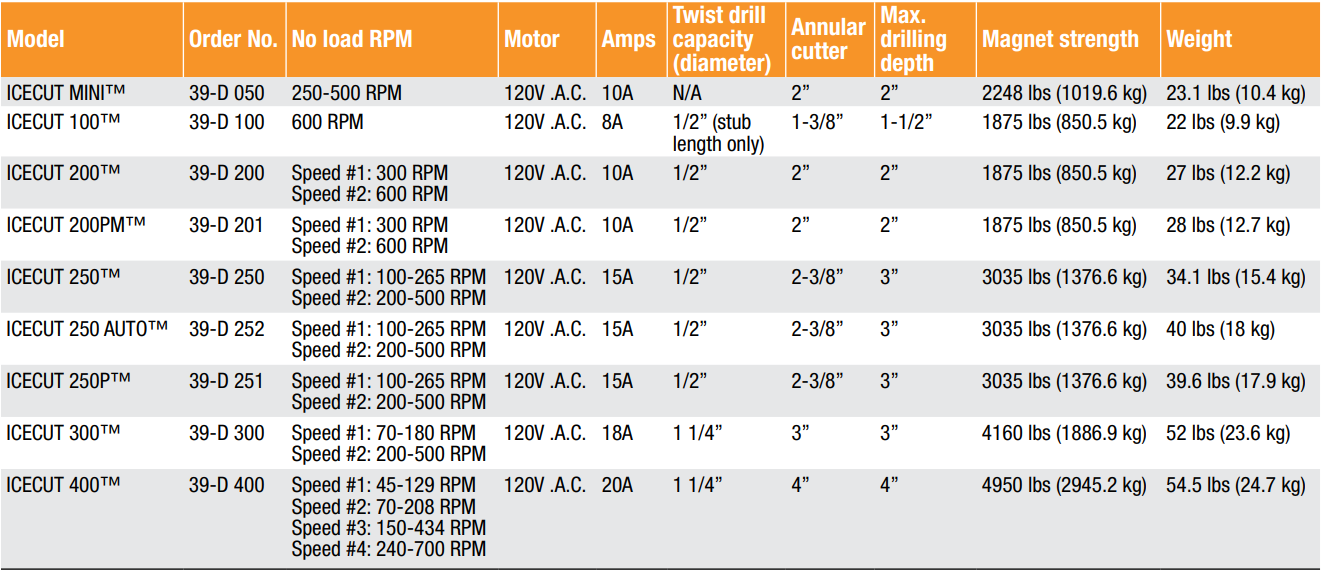

Type: Magnetic Drilling Unit | Series: ICECUT MINI | Watts: 12001200 | Speed: 1-Speed | No Load RPM: 250-500 | Rated Current (A): 10 | Core Cutter Capacity (in.): 2 | Core Cutter Capacity (mm): 50 | Core Cutter Length (in.): 2 | Core Cutter Length (mm): 50 | Magnetic Holding Force (in.): 10000 | Max Drill Point Pressure (lbs): 2248 | Max Drill Point Pressure (KG): 1020 | Total Stroke (mm): 61 | Total Stroke (in.): 2-3/8 | Magnetic Field Sensor: NO | Arbor (in): 3/4
Features:
- Lightweight unit
- Permanent electromagnet for safety and functionality
- Low profile and compact body allows for making holes in extremely tight spaces
- Walter's Dynamax speed control ensures RPM speeds remain constant
- Accurdrill™ system protects unit from overload and the risk of cutter breakage
- Largest drilling capacity in its class
- 250-500 No Load RPM
Looking for more information about Walter Straight Drills? Click here to view the Catalog
For help choosing the correct Walter Surface Technologies Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
