Chicago Pneumatic

Chicago Pneumatic CP3850-85AB7V Angle Wheel Grinder | 2.8 HP | 8,500 RPM | 7" Max Wheel Capacity

List Price: $2,031.79
$1,669.96
(You save $361.83 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships within 1 to 3 Weeks
SKU:
6151607440
Shipping:
Calculated at Checkout
Weight:
6.60 LBS
Condition:
New
Adding to cart… The item has been added
Description


Chicago Pneumatic CP3850-85AB7V Angle Wheel Grinder is a culmination of decades of research and technical refinement. Chicago Pneumatic tools are reliable, safe and robust and are value for money and easy to use. Chicago Pneumatic 6151607440 Angle Grinder is designed to provide superlative performance and ergonomics and is engineered to outlast and outperform the competition. It features a 2.8 HP motor which delivers plenty of strength with 8,500 RPM of rotational speed. CP3850-85AB7V Angle Grinder also features double action safety lever that ensures operator safety. This pneumatic tool meets the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications. This pneumatic air tool is ideal for industrial use and demanding environments.

Model: CP3850-85AB7V | Free Speed: 8,500 rpm | Length: 340mm / 13.4" | Min. Hose Size: 16mm / 5/8" | Power: 2,100 kW / 2.8 hp | Sound Power dB(A): 98 | Sound Pressure dB(A): 87 | Vibration Uncertainty (K): 1.1 m/s² | Wheel Capacity: 180mm / 7"

Features & Benefits:

  • Industrial angle wheel grinder
  • Highest durability in demanding applications with up to 2,000 hours maintenance intervals
  • Superior torque for maximum productivity
  • Superior ergonomics
  • Low profile angle head
  • Superior durability bevel gearing
  • Double action safety lever
  • Curved handle housing
  • Integrated silencer
  • Orientable exhaust
  • Spindle lock button
  • Vibration damping multi-position side handle


industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Grinder for your assembly application, call (800) 608-5210 or email info@intlairtool.com

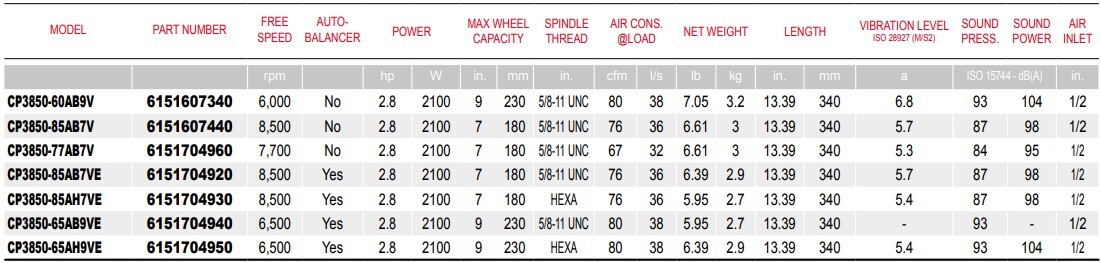

Specifications
Type:
Angle Wheel Grinder
Motor (HP):
2.8
Power (kW):
2,100
Free Speed (RPM):
8,500
Max. Wheel Capacity (in.):
7
Max. Wheel Capacity (mm):
180
Spindle Thread (in.):
5/8-11
Free Speed Air Consumption (cfm):
36
Air Consumption @ Free Speed (l/s):
17
Actual Air Consumption (cfm):
77
Actual Air Consumption (l/s):
36
Length (in.):
13.4
Length (mm):
340
Min. Hose Size (in.):
5/8
Min. Hose Size (mm):
16
Sound Pressure dB(A):
87
Sound Power dB(A):
98
Air Inlet Thread Size (in.):
1/2
Warranty Information
One year warranty against defects in materials and workmanship
