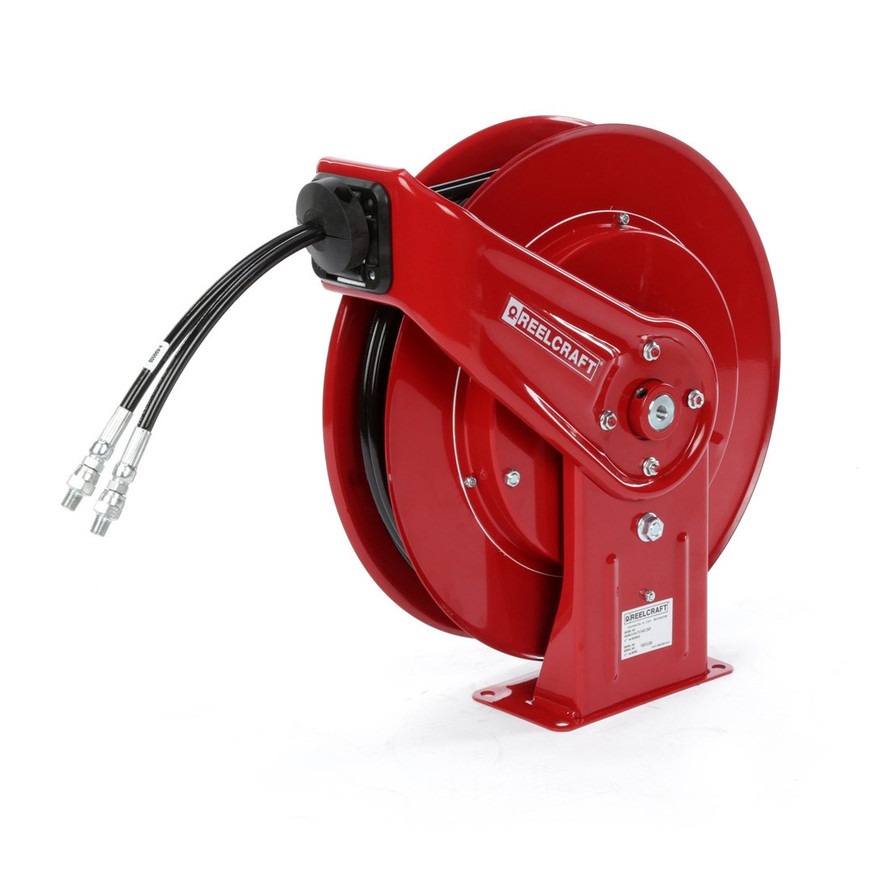

Reelcraft THA7630 OMP Dual Hydraulic Spring Retractable Hose Reel | 3/8 in. Hose Diameter | 30 Ft. Hose Length | 2,000 Max PSI

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Reelcraft THA7630 OMP Dual Hydraulic Spring Retractable Hose Reel | 3/8 in. Hose Diameter | 30 Ft. Hose Length | 2,000 Max PSI

Reelcraft

List Price: $925.00
$875.00
(You save $50.00 )
(No reviews yet) Write a Review
Availability:
Available to Order | Usually Ships Within 2 to 4 Weeks
SKU:
THA7630 OMP
Shipping:
Calculated at Checkout
Weight:
53.00 LBS
Condition:
New
UPC:
699567005698
Adding to cart… The item has been added


Reelcraft’s hydraulic reels are used for medium pressure dual hydraulic hose applications and are ideal for operating hydraulic cylinders, tools and equipment. Reelcraft’s Series TH reels incorporate contemporary engineering and manufacturing techniques for trouble-free performance. Reels are all steel construction and compact for applications with critical space requirements.

Features:

  • Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
  • Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
  • Constant tension or pos-i-latch spool mechanism.
  • Compact design for critical space requirements

Specifications:

  • Hose Internal Diameter: 3/8"
  • Hose Length: 30 Ft.
  • Max PSI: 2,000
  • Male NPTF Hose Outlet: 3/8"
  • Female NPTF Reel Inlet: 3/8"
  • Length: 19.75"
  • Width: 7.75"
  • Height: 20.25"

Made in USA usa-flag.gif

Dimensions:

  • A - 20.25"
  • B - 19.75"
  • C - 7.875"
  • D - 3.875"
  • E - 7.75"


industrial-tools-parts-breakdown.pngLooking for more information about Reelcraft Hose Reels? Click here to view the Catalog

For help choosing the correct hose reel, please call (800) 608-5210 or email info@intlairtool.com

Two year warranty against defects in materials and workmanship.
Type:
Hose Reel
Series:
TH7000
Hose I.D. (in):
3/8
Hose Length (ft):
30
Max Temperature:
210 °F
Max PSI:
2,000
Male NPTF Hose Outlet (in):
3/8
Female NPTF Reel Inlet (in):
3/8
Hose Included:
Yes
